Rooms Are In Section – What About View Range?

February 17, 2009

So, Revit 2009 introduced the wonders of seeing rooms in sections. Hooray! That was terribly exciting for a couple minutes. Now it’s time for something practical.

One item that would be so much easier to control graphically are view ranges. All plans and RCPs have them. You can control elevation “ranges” in a plan, why not give us some nice interface to control a plan’s view range in section?

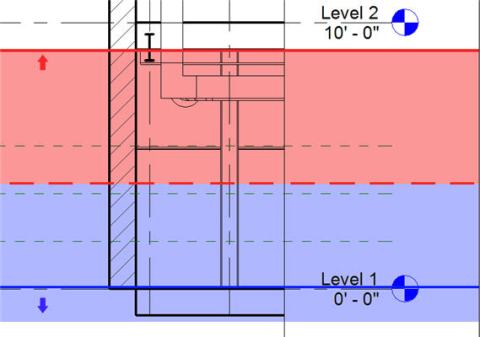

siderange01

Something like that? A toggle at the top and bottom for UNLIMITED on TOP and VIEW DEPTH, or a draggable bar, and a draggable bar for the CUT PLANE and the BOTTOM. How cool would that be?
